Piaggio Porter Multitech Engine Oil Replacement
1 - Start the engine and warm it up for a few minutes
2 - Switch off and raise the driver's seat
3 - Unscrew the engine oil filler cap
4 - place the vehicle on the lift.
5- Unscrew the central screw on the lower engine guard (see photo)
6 - Unscrew the side screw on the lower engine guard (see photo)
7 - Unscrew the side screw on the lower engine guard (see photo)
8 - Get a suitable container and unscrew the engine oil drain plug.

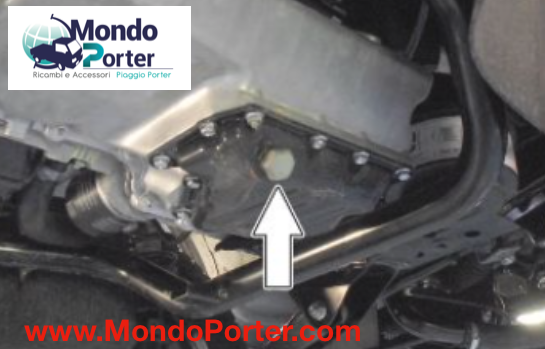

9 - Unscrew the engine oil drain plug (see photo)
Piaggio Porter Multitech Engine Oil Filter Replacement
10 - Unscrew the engine oil filter using the appropriate spanner. Check and clean the filter housing surface.
11 - Lubricate the sealing ring of the new oil filter with engine oil before fitting it, screw it by hand until the sealing ring comes into contact with the mounting surface
12 - Tighten the oil filter by 3⁄4 of a turn by hand or with the appropriate wrench up to the prescribed torque. Clean and install the drain plug inserting a new gasket respecting the prescribed torque.
Locking torques (N*m)
Oil filter - Cylinder block 14 ± 2 Nm
Engine oil drain plug - Engine oil pan 25 Nm
