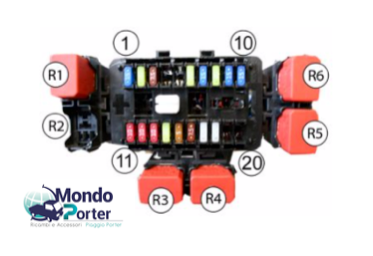

The fuse holder box of the piaggio porter is located under the dashboard
In order to proceed with the check and possible replacement of the damaged fuse, we will show you the locations of the fuses in this article
Piaggio Porter Relay Position and Function
Location Function
|
R1 |
MAIN RELAY |
|
R2 |
FUEL PUMP RELAY |
|
R3 |
FOG RELAY |
|
R4 |
FRONT LIGHTS MANAGEMENT RELAY |
|
R5 |
REAR FOG LIGHT CONSENT RELAY (2) |
|
R6 |
AIR CONDITIONING RELAY |
Position and Function of Piaggio Porter Fuses
Position Function Amperage
|
#1 |
MAIN RELAY |
30A |
|
No.2 |
FRONT FOG LIGHTS (*) |
15A |
|
No.3 |
ACOUSTIC WARNING |
15A |
Position Function Amperage
|
No.4 |
GENERAL LIGHTS |
20A |
|
No.5 |
12V ACCESSORY SOCKET - CIGARETTE LIGHTER |
15A |
|
No.6 |
ELECTRONIC CONTROL UNIT |
25A |
|
No.7 |
DASHBOARD - HEATER |
20A |
|
No.8 |
WINDSCREEN WIPER |
15A |
|
No.9 |
AIR CONDITIONING (*) |
10A |
|
No.10 |
REAR WINDOW DEFROSTER (*) |
10A |
|
No.11 |
10A |
|
|
No.12 |
10A |
|
|
No.13 |
TIPPING (*) |
5A |
|
No.14 |
OBD DIAGNOSTIC SOCKET |
10A |
|
No.15 |
EPS - ELECTRIC POWER STEERING |
3A |
|
No.16 |
ABS (power supply under key) (*) |
5A |
|
No.17 |
ENGINE OIL COOLER ELECTRIC FAN (*) |
20A |
|
N.18 ABS (Battery power supply) (*) 20A |
||
|
N.19 CENTRALIZED LOCKING (*) 25A |
||
|
N.20 ELECTRIC WINDOWS (*) |
||
