Piaggio Porter LPG filter replacement

filtriChristian Sorbello
Sostituzione Filtro Gpl Piaggio Porter

Guide for replacing the Piaggio Porter LPG filter cartridge

It is possible to replace the complete filter or just the filter cartridge , following this last procedure.

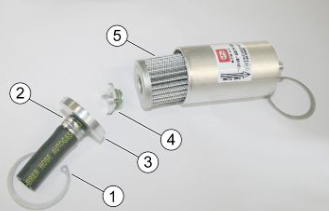

Let's analyze the components in the figure:

Piaggio Porter LPG filter

1 - Saw

2 - Hose clamp

3 - Filter cap

4 - Filter cartridge cap

5 - Filter cartridge

Follow the procedure below:

1 - Remove the clamp (2) on the pipe,

2- remove the Seeger (1),

3- remove the filter box cap (3) to access the filter cartridge .

Piaggio Porter LPG filter - BRC- 659749

4 - Remove the clamp (2) on the pipe,

5- remove the Seeger (1),

6- remove the filter box cap ( 3) to access the filter cartridge.

7 - Close the filter body ,

8 - fit the seeger rings and the hose clamps on the pipes

9 - reopen the tap on the multivalve.

10- Fit the cap (3) in the filter body .

Piaggio Porter LPG filter - BRC- 659749

11- fit the seeger ring (1) and close the filter box .

Piaggio Porter LPG filter - BRC- 659749
