Disassembly - Piaggio Porter Angular Faceplate
The procedures described below are equivalent for both sides of the vehicle.
1 - Remove the headlight unit.

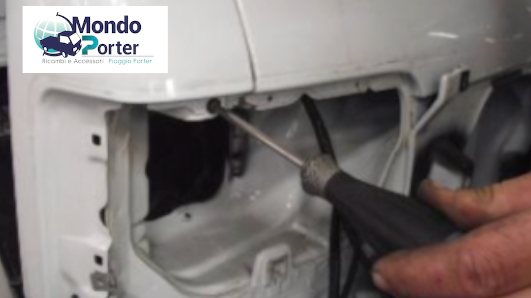

2 - Unscrew the front fixing screw of the side panel to the frame.
3 - Undo the side fastening screw of the side panel to the frame
4 - Undo the rear fastening screw of the side panel to the frame.
5 - Using a suitable tool, release the lower fastening button
6 - Using a suitable tool, release the upper fastening button.
7 - Remove the side panel
