Piaggio Porter Desk Registration

Longitudinal adjustments

Before torquing the door fixings, respect the specified distance values.

Technical features

Prescribed longitudinal dimensions

Distance: 3.5 ÷ 7.5 mm

Tolerance: <1.5mm

Tolerance between right and left side: <2mm

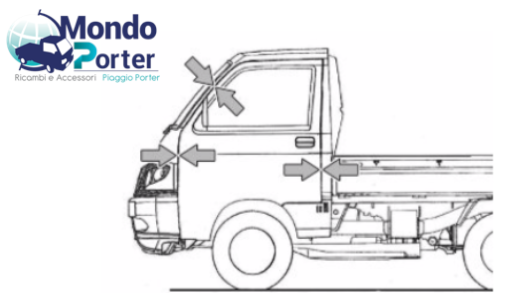

door adjustment piaggio porter

Act on the screws of the upright side hinge to carry out the longitudinal adjustment

Before torquing the door fixings, respect the specified distance values.

Distance: 3.5 ÷ 7.5 mm

Tolerance: <2mm

Tolerance between right and left side: <2mm

door adjustment piaggio porter
