Piaggio Porter Np6 Engine Oil

Here is a small guide to help you independently replace the engine oil and the oil filter in your piaggio porter np6

What Engine Oil does the Piaggio Porter Np6 carry?

The recommended engine oil for Piaggio Porter Np6 is the 10W-40 Lubricant with synthetic bases for four-stroke engines.

SAE 10W-40; JASO MA, MA2; SL APIs; ACEA A3

Here is the mini guide to check the engine oil level on your Piaggio Porter Np6 :

1 - Park the vehicle on a level surface and warm up the engine until it reaches normal operating temperature, then turn it off.

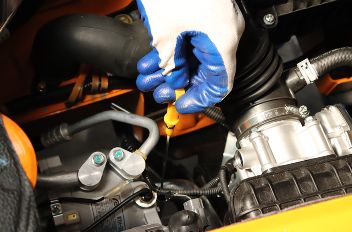

2 - After a few minutes, slowly remove the oil dipstick and clean it

motor oil piaggio porter np6

3 - Insert the rod again all the way down

4 - Extract the dipstick again and check if the oil level is between the «MIN» and «MAX» marks.

piaggio porter oil np6

5 - If the engine oil level is too low, top up only with the recommended type of oil

Here is a small guide to help you independently replace the engine oil and the oil filter in your piaggio porter np6

Start the engine and warm it up for a few minutes, then switch off and place the vehicle on the lift

1 - Unscrew the engine oil filler cap on the tappet cover located under the left seat

motor oil piaggio porter np6

2 - Raise the lift, get a suitable container and unscrew the engine oil drain plug

motor oil piaggio porter np6

3 - Unscrew the engine oil filter using the special spanner. Check and clean the filter housing surface.

piaggio porter oil np6

4 - Lubricate the sealing ring of the new oil filter with engine oil before fitting it.

piaggio porter oil np6

5 - Screw by hand until the sealing ring contacts the mounting surface.
Properly tighten the engine oil filter.

piaggio porter oil np6

6 - Tighten the engine oil sump cap to the prescribed torque.

piaggio porter oil np6

Locking torques (N*m)
Oil sump cover - Oil sump 11.0 ± 1.0 Nm

7 - Lower the lift and use a funnel to fill in the engine oil.

motor oil piaggio porter np6
