Replacement and Assembly Guide - Piaggio Porter Brake Pads
To Perform Steps Place the vehicle on the lift.
Removal - Piaggio Porter Brake Pads
1 - Remove the front wheel, once the wheel is removed Remove the clips due to the brake pads
2 - Remove the two pins from the brake calliper

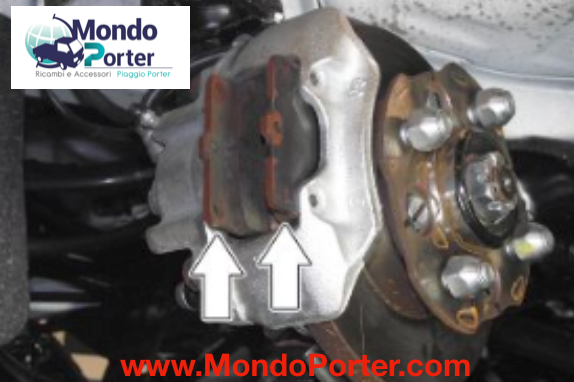

3 - Remove the two brake pads
4 - Check that the hard disk pad is not damaged and that the thickness of the friction material is within the specified values. Replace if necessary or as indicated in the scheduled maintenance table.
Technical features
Minimum thickness of brake pad wear material
1mm
Installation of Piaggio Porter Brake Pads
1 - Insert the brake pads in their seat
2 - Insert the pins making the holes collimate
3 - Fit the clips on the brake caliper . Mount the front wheel
