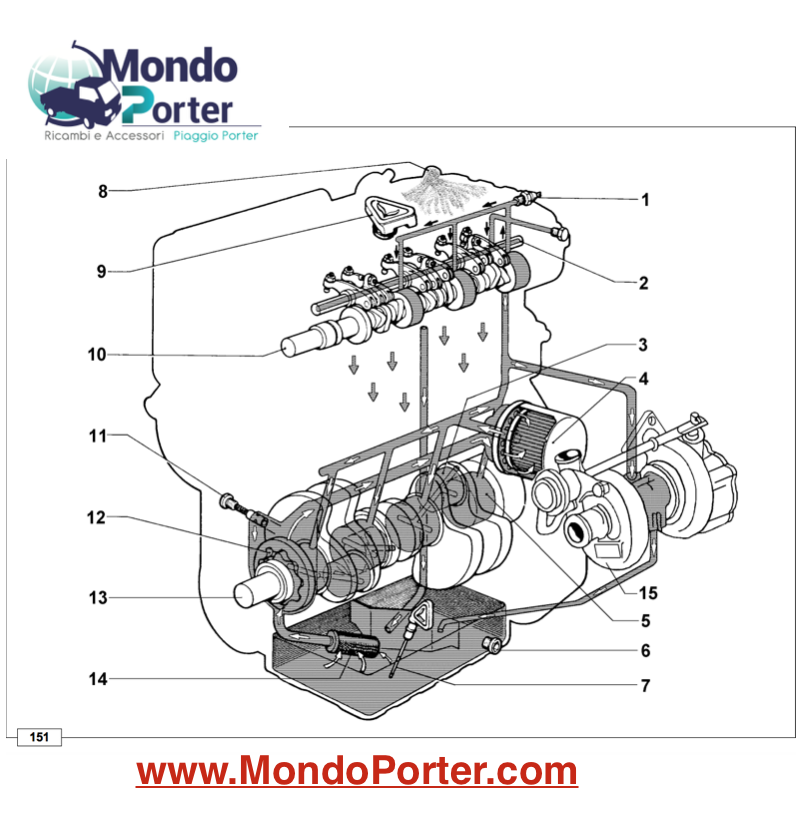

Piaggio Porter 1.4 Diesel lubrication circuit
Below I will illustrate the operation and the components necessary for the correct lubrication of yours
Piaggio Porter 1.4 diesel Lombardi with engine number LDW1404P:
Components:
1 pressure switch
9 Oil filler cap
2 Rocker arm pin
10 Camshaft
3 Big end pin
11 Oil pressure ADJUSTMENT valve
5 Main journal
6 Oil drain plug
14 Oil suction filter
7 Oil Dipstick
15 Turbo compressor with hoses Related information Present only in LDW 1204 / T 8 vent
